TM601 Plus Clamp-on Ultrasonic Flowmeter
Clamp-on compact type ultrasonic flow meters.
Product Description
TM601 Plus is a flow meter specially designed for ultrasonic cleaning machines
1. Only takes 1min to complete the installation and start the measurement
2. No additional changes to the pipeline, and installation and measurement can be completed according to the operating instructions.
3. It can be installed and used without stopping production, without any pipeline modification, and without pressure loss
4. OLED display (128x 64px), even in the dark environment has the best display
5. Suitable for a variety of pipelines: stainless steel pipes, carbon steel pipes, copper pipes, PVC, PVDF, PPR, PPH, HDPE, etc.
Benefit & Feature
- No Pipe Modification Necessary
The difficulties commonly associated with installing a new ultrasonic flow meter are eliminated by simple CLAMP-ON. This design eliminates the need to cut pipe, shut down pipe running, stop production, offer additional costs, and much more.
- Snap-On Type Installation
The main unit(display screen) has a very special and easy installation. its back has snap-on design. It can be easily installed by just clamping it on pipe clamp that can accommodate the buckle on its back.
- Big Pipe Size,Big Pipe Clamp

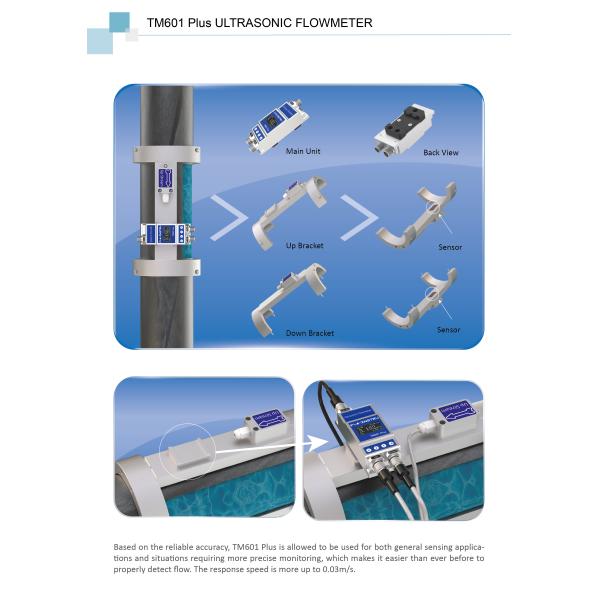

In order to fit bigger pipe diameter, TM601 Plus also matches the pipe clamp that can meet this type of size. The sensor is located in top bracket and bottom bracket respectively, which can fully measure the flow velocity and liquids. Unique design is more suitable for complex application environment.
Specifications
| Velocity Rate | 0.328 ft/s～±16ft/s(0.1m/s～±5m/s) |
| Accuracy | ±2.0% |
| Pipe Size | DN100 DN125 DN160 DN200 |
| Liquid | Regular water,sea water,cooling/hot water,alcohol.. |
| Pipe Material | PVC,stainless steel,carbon steel,copper.… |
| Power Supply | 9～36V DC,maximum 500mA |
| Communication | Support MODBUS protocol,RS485 |
| Analog Output | 4-20mA,Maximum 750Ω |
| Alarm Output | OCT upper and lower limit alarm function (optional) |
| Display | OLED 128*64 dot-matrix display screen |
| Key Panel | Four touch buttons |
| Flow Unit | Support metric unit selection,Cubic Meters(m³),Liters(l),USA Gallons(gal). |
| Time Unit | /hour,/min,The factory default unit is cubic meters per hour. |
| Daily,Monthly,and Annual Flow Totalizer |
| Temperature | Ambient:14F～+122F(-10℃～+50℃) |
| Liquid:14F～+122F(-10℃～+50℃) |
| Ambient Humidity | RH 0～95%,No condensation |
| Housing Material | Aluminum alloy,CNC machined processing |
| Protection Rate | IP54 |
| Cable Length | 6.6ft (2m)standard |
The Pipe Size Range and Flow Range Reference Table
| DN | OD | OD Range | Inch | Flow Range |
| DN100 | OD110 | 108mm-116mm | 4" | 2.917～145.858 m/h |
| 48.619～2430.963 l/min |
| 12.844～642.194 gal/mir |
| DN125 | OD140 | 132mm-142mm | 5" | 4.558～227.903 m³/h |
| 75.968～3798.380 I/min |
| 20.069～1003.429 gal/min |
| DN150 | OD160 | 158mm-168mm | 6" | 6.564～328.180 m³/h |
| 109.393～5469.666 l/min |
| 28.889～1444.938 gal/min |
| DN220 | OD220 | 218mm-228mm | 8" | 11.669～583.431 m³/h |
| 194.477～9723.852 I/min |
| 51.376～2568.778 gal/min |
